General DVR Solutions

Ashtron Security Solutions offer a comprehensive series of Digital Video Recorders called Guardian DVR series. Ranging from 4 to 16 Video/Audio inputs, Vanguard Integrated Solutions has a DVR for various applications including Financial, Transportation, and the General Enterprise. General DVR models are suitable for small to medium business and domestic surveillance.

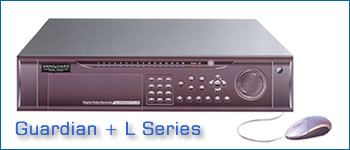

Guardian + L Series

Guardian + L Series

Model Specification
GDN PLUS 04/08/16L 4/8/16 channel audio/video basic model
GDN PLUS 04/08/16LL 4/8/16 channel loop and matrix combination model
GDN PLUS 04/08/16LH 4/8/16 channel loop matrix and audio/video model



  • Embedded Linux-based Network DVR
  • 4/8/16 Video Inputs, 4/8/16 Audio Inputs, 8 HDDs, DVD Writer
  • 2 USB Interface for Mouse and Backup, Alarm I/O
  • H.264 Compression, 400/480 FPS Recording Rate at CIF
  • Disk Mirroring and Dual Video Streams
  • Built-in HTTP Web Server
  • Built-in Matrix Support (Optional)
  • Multi Resolutions (CIF, 2CIF, and 4CIF)

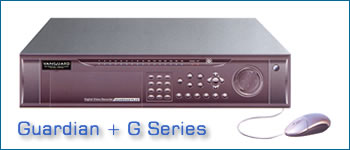

Guardian + GE

Guardian + G Series

Model Specification
GDN PLUS 04/08/16 GE 4/8/16 channel audio/video basic model
GDN PLUS 04/08/16 GEL 4/8/16 channel loop and matrix combination model
GDN PLUS 04/08/16 GEH 4/8/16 channel loop matrix and audio/video model



  • Embedded Linux-based Network DVR
  • ATM/POS Transaction Text Integration (Optional)
  • 4/8/16 Video Inputs, 4/8/16 Audio Inputs, 8 HDDs, DVD Writer
  • 2 USB Interface for Mouse and Backup, Alarm I/O
  • H.264 Compression, 400/480 FPS Recording Rate at CIF
  • Disk Mirroring and Dual Video Streams
  • Built-in HTTP Web Server
  • Built-in Matrix Support (Optional)
  • Multi Resolutions (CIF, 2CIF, and 4CIF)
