Ashtron Security Solutions offers an extensive range of high-resolution color cameras for the CCTV market. From small, economical cameras providing true color and image quality to day/night cameras and cameras featuring DSP technology with Super Wide Dynamic Range and Network Support.

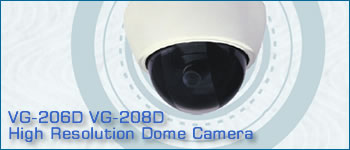

VG-206D
High Resolution Dome Camera
Model VG-206D
Specification
Image pick up device
1/3" Sony Super HAD CCD
Signal system
PAL/NTSC color system
No.of effective pixels
PAL:500(H) 582(V); NTSC:510(H) 492(V)
Horizontal resolution
420TV Lines
S/N ratio
More than 52 dB
Minimum illumination
0.8Lux/F1.2
AGC/BLC
Automatic
AWB
Automatic
Electronic shutter
1/50-1/100,000sec (PAL), 1/60-1/100,000sec (NTSC)
Gamma correction
>0.45
Sync.Type
INT
Lens type
Fixed board lens f=3.6,6,8,12,16mm optional
Output signal
1.0Vp-p,75Ohm,sync negative polarity
Power supply
DC 12V
Power consumed
150mA(Max)
Working temperature
-10 ~+50 RH95% Max
Dimension
114x87mm
Weight
220g
1/3" S ony S uper H AD C CD,D igital S ignal P rocessing ( DSP)
High Resolution: 520TVL
0.3Lux/F1.2
S/N ratio over 52dB
AGC,AWB, BLC,ES
Built-in i ntegrative b oard l ens f =3.6,6 ,8 ,1 2,1 6mm o ptional
Elegant A ppearance, applying in concealing place
VG-208D
High Resolution Dome Camera
Model VG-208D
Specification
Image pick up device
1/3" Sony Super HAD CCD
Signal system
PAL/NTSC color system
No.of effective pixels
PAL:752(H) 5 82(V);N TSC:768(H) 494(V)
Horizontal resolution
480TV Lines
S/N ratio
More than 52 dB
Minimum illumination
0.3Lux/F1.2
AGC/BLC
Automatic
AWB
Automatic
Electronic shutter
1/50-1/100,000sec (PAL), 1/60-1/100,000sec (NTSC)
Gamma correction
>0.45
Sync.Type
INT
Lens type
Fixed board lens f=3.6,6,8,12,16mm optional
Output signal
1.0Vp-p,75Ohm,sync negative polarity
Power supply
DC 12V
Power consumed
150mA(Max)
Working temperature
-10 ~+50 RH95% Max
Dimension
114x87mm
Weight
220g
1/3" S ony S uper H AD C CD,D igital S ignal P rocessing ( DSP)
High Resolution: 520TVL
0.3Lux/F1.2
S/N ratio over 52dB
AGC,AWB, BLC,ES
Built-in i ntegrative b oard l ens f =3.6,6 ,8 ,1 2,1 6mm o ptional
Elegant A ppearance, applying in concealing place

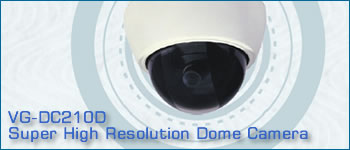

VG-DC210D
Super High Resolution Dome Camera
Model VG-DC210D
Specification
Image pick up device
1/3" Sony Super HAD CCD
Signal system
PAL/NTSC color system
No.of effective pixels
PAL:752(H) 5 82(V);N TSC:768(H) 494(V)
Horizontal resolution
520TV Lines
S/N ratio
More than 52 dB
Minimum illumination
0.3Lux/F1.2
AGC/BLC
Automatic
AWB
Automatic
Electronic shutter
1/50-1/100,000sec (PAL), 1/60-1/100,000sec (NTSC)
Gamma correction
>0.45
Sync.Type
INT
Lens type
Fixed board lens f=3.6,6,8,12,16mm optional
Output signal
1.0Vp-p,75Ohm,sync negative polarity
Power supply
DC 12V
Power consumed
150mA(Max)
Working temperature
-10 ~+50 RH95% Max
Dimension
114x87mm
Weight
220g
1/3" S ony S uper H AD C CD,D igital S ignal P rocessing ( DSP)
High Resolution: 520TVL
0.3Lux/F1.2
S/N ratio over 52dB
AGC,AWB, BLC,ES
Built-in i ntegrative b oard l ens f =3.6,6 ,8 ,1 2,1 6mm o ptional
Elegant A ppearance, applying in concealing place
Advanced DSP technology, enhances picture quality greatly to
resolution of 520TVL
Natural color response & Outstanding picture qualit
